Tiffany Reservoir

11 Tuesday Sep 2018

Posted by Ronald Parks in Baltimore, engineering, water history

≈ 3 Comments

Tags

Baltimore, bridges, Dams, engineering, Gunpowder Falls, HISTORY, Jones Falls, Lake Montebello, Lake Roland, maps, POLITICS, Public Works, Research, water history

Quite an interesting find: A map from 1867. What makes this map so interesting is that in all my research I never came across any references for having the Gunpowder Falls connected to a reservoir called Tiffany. Everything I read said it would flow by gravity to a new reservoir, Lake Montebello.

First off, let my give a little history on how this water supply came about. Starting in 1836: Samuel Smith, Mayor, appoints a committee to hire the services of a Delaware Engineer named John Randall, to study and recommend a plan for the Baltimore Water Supply. In 1837 John Randall proposed that the City of Baltimore gets its water from the Great Gunpowder Falls. Suggested building two dams, one dam on the Gunpowder near Tysons Mill and the second dam on the Western Run near York Road. Water from these dams was to flow by gravity into the valley of Jones Falls to a receiving reservoir at about Elevation 300. Lake Roland is at 300’

In 1850 consulting engineers are hired to look into Randall’s proposal and then in 1852 a water commission is formed.

1854 Mr. John Smith Hollins, Mayor. Mr. Alfred Duval, Civil Engineer of Baltimore and a private citizen, presented a report to the Council recommending the development of a water supply from the Gunpowder Falls. Duval recommended the building of a dam at Raven’s Rock, the closest point on the Gunpowder Falls to the City, and a tunnel to convey the water by gravity from the dam to a receiving reservoir near Montebello. Mr. Sickles recommended to the Council the adoption of a modified version of the Duval proposal. Mr. Sickles had made extensive surveys and reported to the Mayor and City Council a plan for an ‘air-lined tunnel’ to convey the water of the Gunpowder to the City. An ordinance authorizing such a development was passed by the Council in October but was never signed by the Mayor.

1857 Mr. Thomas Swann, Mayor. Mr. James S. Suter, Water Engineer (April 14, 1857). Original plan for the Jones Falls development was modified by an ordinance adopted in July.  Ordinance instructed Water Commissioners to procure an increased supply of water from Jones Falls “agreeably to a plan heretofore reported to the Council by James Slade, Civil Engineer”. The Water Board is reorganized on April 14 and the first Water Engineer appointed was James Suter.

1860 Swann Lake, (Lake Roland) is completed on the Jones falls.

1861 both the Hampden and Mt Royal Reservoirs are completed.

1866 Mayor John Lee Chapman realizes the approaching inadequacy of Jones Falls as a continuing source of future water supply.

1867 A map of Tiffany Reservoir is drawn up.

As can be seen in this portion of the map below, the location is on the western side of Hillen Road. On a 2018 map it would be the area of Hillen Rd. and 35th St. Where Mergenthaler school is and the area where the houses are on 35th.

Here is an early photograph of the area where Lake Montebello would be. I am assuming that this is looking east from Hillen Rd to the site of the lake.

And here is an 1880s map showing how the lake and Loch Raven Conduit was (and is) laid out.

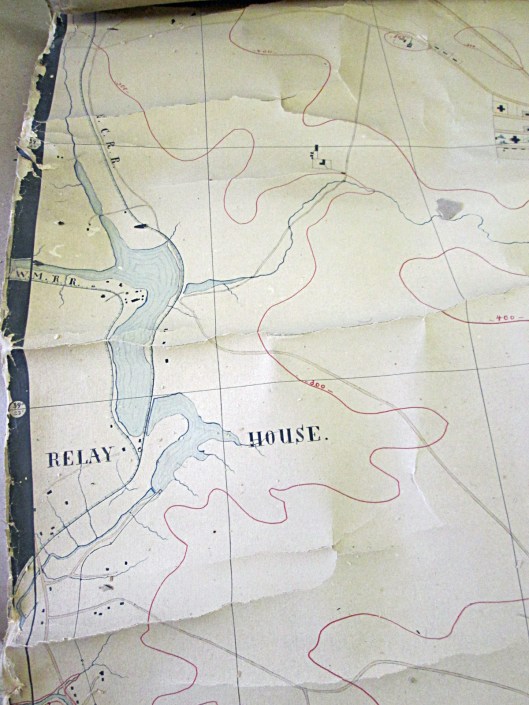

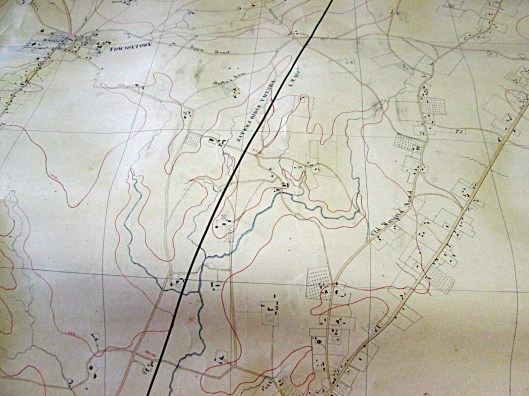

Returning to the Tiffany Reservoir map, a couple things of interest: On the Tiffany map you can see it says Tiffany Conduit connected to Tiffany T (tunnel) then to Herring Run Conduit. Looking close you can see that there are two colorings of this conduit; the first and third sections being blue. The middle section (Tiffany T) is black. All the black sections in this conduit are underground. All the blue ones are open channels. I believe this is where the term ‘Air-lined Tunnel’ came from? That there was not enough head pressure to completely fill the underground portions. Following the tunnel north. The Herring Run Conduit becomes the Sater’s Ridge Tunnel.

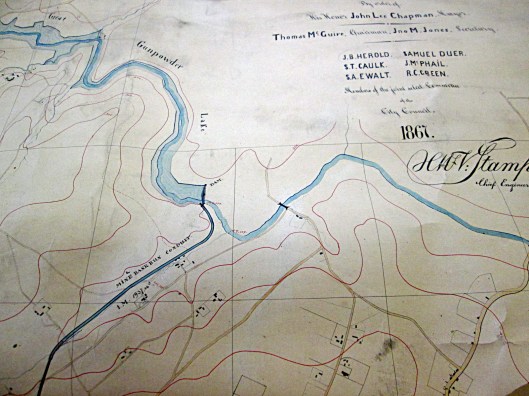

And that turns into the Mine Bank Conduit, to the dam at Loch Raven. Another symbol on this map I like is that all the roads pass over the river and streams as regular bridges. On the one below you can see where the road passes over the Gunpowder, below the dam and around the corner, it is colored in, which shows that back in 1867 there was a covered bridge at Cub Hill and Cromwell Bridge roads.

A couple more items of interest on this map – The location of Glenn Ellen Castle.

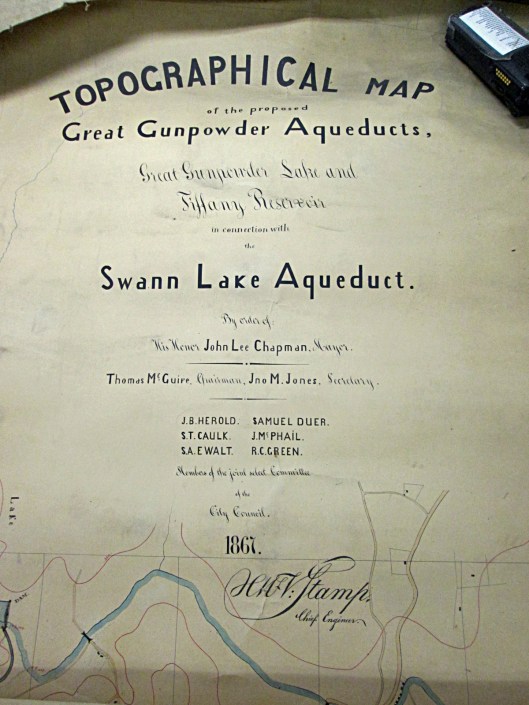

Swann Lake (Lake Roland). The title of the Tiffany Map is somewhat wrong. It states “In connection with the Swann Lake Aqueduct.” I believe it should say “In relation to”. On this map I do not see it connected.

The Hampden (Noted as Hampton on map) and Mt. Royal Reservoirs.

And this map portion that shows the Johns Hopkins property before it became Lake Clifton, and a race track in the lower right corner. In a few years from this map’s date, a Baltimore County water filtration plant will be built near the track; using ozone filtering technology. (I forget off hand what the date was – maybe 1907?)

And finally, on the map title is HMF v Stamp as the Chief Engineer. I could not find anything about this person until 1873 where he is listed as the contractor to build the Temporary Water Supply, from the Gunpowder to Roland Run, which fed Lake Roland. It consisted of a couple pumps near Meredith Bridge, running some pipes to dump into Roland Run.

The Tiffany Run Reservoir was never built. Lake Montebello was. Many droughts, flooding of the Jones Falls and finally and over polluted Jones Falls required the new, permanent Gunpowder Works to be built – and is still in service today.

Note: This map is too brittle and too large for my scanner.

Highlights in Public Works History part 2

11 Monday Jun 2018

Posted by Ronald Parks in Archives, Baltimore, engineering, HISTORY

≈ Leave a comment

Tags

Baltimore, bridges, Dams, engineering, Gunpowder Falls, HISTORY, Latrobe, Montebello, POLITICS, Public Works, Research, Route 40, water history, White wings

Some more flyers from the DPW Museum.

Bollman, bridge engineer:

B.H. Latrobe:

Centre Fountain:

Loch Raven-Montebello Tunnel:

The Baltimore Pike:

City Hall:

The white Wings:

Back River:

Montebello Filters:

C.H. Latrobe:



Highlights in Public Works History part 1

05 Tuesday Jun 2018

Posted by Ronald Parks in Archives, Baltimore, engineering, HISTORY

≈ Leave a comment

Tags

Baltimore, bridges, engineering, FILTRATION, HISTORY, Museum, POLITICS, Public Works, Research, water history

Continuing with documenting and archiving, I found a collection of small posters concerning Public Works. I believe these were given out at the DPW Museum in Baltimore back in the 1980s during the time it was open. There are some missing and I hope to be able to find them, to complete the collection. Here are issues #1,3,4,6 and 7.  #1 has some misinformation. The Roland Tower was completed in 1905 according to Annual Reports. Not sure what the word exhaneous, which is handwritten on the poster, means?

#3 comes from Abel Wolman’s booklet, “The Livable City”.

#4 from the exhibit: Baltimore’s Bridges and Their Builders.

#6 from 1985’s Women’s Week.

#7 is about our infrastructure.

Over the years there have been many attempts at posters, exhibits, newsletters etc. I wish they would start doing more of the history in a poster like the above or a new newsletter… The City attempted to try a new format of the Annual Report, but it is inconsistent and sporadic at best.

Loose Ends Never End

05 Thursday Apr 2018

Posted by Ronald Parks in Archives, engineering, water history

≈ 6 Comments

Tags

Baltimore, Construction, Dams, engineering, Patapsco, photography, POLITICS, Public Works, Research, scanning, water history

Loose Ends Never End sounds like some spiritual/metaphysical quote (It does come from the Bhagavad Gita, chapter 9). But in my case it is more about my trying to tie up some loose ends before I retire. Just when I think I’m about done documenting and scanning the archives – Poof!! More just appear out of nowhere. Well actually I found a bunch more under my work bench. Three index drawers full of 3-1/2″ x 5″ photographic negatives. At first I thought there was only 500 or so. There are over 1,500 of them! I started scanning them yesterday and got about 100 done. Below is a sampling of those.

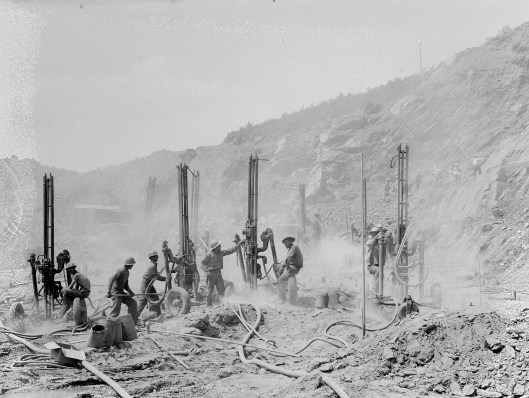

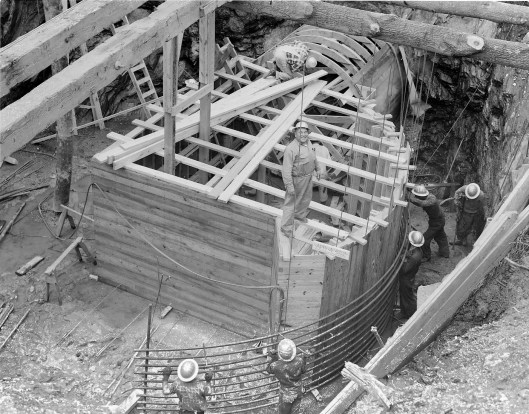

Just glancing through the first couple hundred, it appears these are from the building of the Liberty Dam, starting in 1952. This photo shows a happy foreman on top of the intake structure as it is being built.

The Engineer’s Office – must be before MBE/WBE requirements. Not sure why the one guy has his arm around the other one?

There were four floods on the Patapsco during 1952, all stopping work for a few days – Change Order!

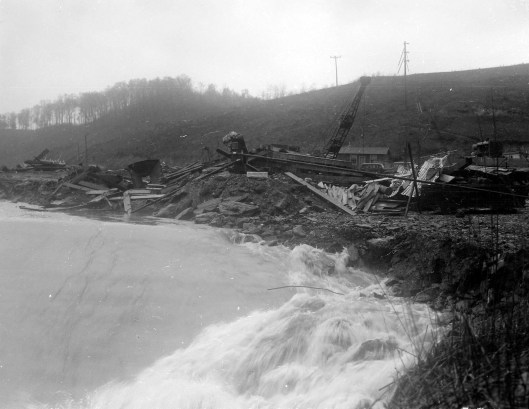

The coffer dams held back some of the water.

The Arundel Corporation’s cement plant.

Ooopps! Not looking too happy now. There were a lot of accidents on the job site in 1952. Most notably a crane fell, crushing one of the workers. There are actually a few photos in this group of that, but I am not posting those. One shows the worker’s head crushed under the I-beam. I cannot believe someone took that photo.

This looks like an accident waiting to happen. I don’t think that truck is capable of holding that bucket safely.

These guys are working. Trying to make up for lost days due to flooding.

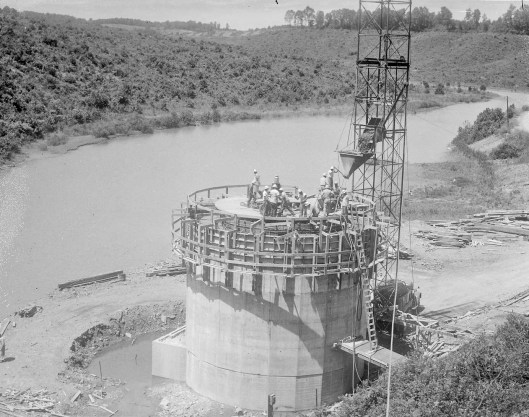

The intake structure rising from the river.

I have been using an Epson 4990 scanner for a few years now. It works pretty good, except the software that came with it is a little off. By that I mean, if I scan a photo negative, it automatically turns it into a positive in a file, but it is too dark and takes a lot of work in the Photoshop Elements software. So I scan it as a positive, which it converts to a negative. Then in PE I invert it and hit auto levels and it looks just right. Some of course will never look right, only because of what the photographer did when taking the photo.

I guess taking care of these loose ends will give me something to do for a while!

Baltimore 1918 – What Happened Baltimore?

20 Tuesday Mar 2018

Posted by Ronald Parks in Baltimore, HISTORY

≈ Leave a comment

Tags

Baltimore, HISTORY, POLITICS, Public Works

1918 – From the City Officers’ Reports, including Mayor’s Message:

The people of Baltimore are proud of their city and sanguine of her future. With an awakening sense of her advantages; with confidence that Baltimore will have honest and economical and at the same time constructive and progressive City Government, private enterprise is going forward by leaps and bounds, co-operating with the public, through their City Government, in giving Baltimore a secure place in the front rank of cities famed for progress, for enterprise and business, for happy homes of a healthy, contented people, and for good government. Very respectfully, [signature] James H Preston, Mayor.

Swann Lake – Not the Ballet

23 Friday Feb 2018

Posted by Ronald Parks in Baltimore, engineering, HISTORY, water history

≈ Leave a comment

Tags

Baltimore, Dams, engineering, HISTORY, Jones Falls, Lake Roland, maps, Monuments, POLITICS, Public Works, Research, water history

When I first started researching the water history of Baltimore, and I came across a map of Swann Lake, I just assumed that it was called Swann Lake because the Mayor at that time was Thomas Swann, who later went on to be the Governor of Maryland.

Here is the man himself. In the journal I am presently transcribing, I came across this entry:

October 4, 1869: The Committee on Swann Lake submitted the following report: Having examined the minutes of the Board and the records of the office, with the view of ascertaining in what way and by what authority the Lake, so long called Lake Roland received the name of Swann Lake, would respectfully call the attention to the Board the following – That Mr. Charles Manning, Chief Engineer was asked to name the principal stream that supplies the Lake, by which with great propriety the Lake could be known. Under his direction the name of Lake Roland was placed over the door of the stop house and a map of Lake Roland was presented to the Water Board with the general and final report of the Chief Engineer on the completion of the Works. In this manner the lake became known to all our citizens, by a familiar and more appropriate local name. The Board of Water Commissioners, by resolution, posed at a regular meeting on December 26, 1861, approved and adopted what had been done in the premises…to be called Lake Roland. At some subsequent period the name on the door (Roland) was erased and Swann Lake inserted and a patch was made and placed on the map stating the same. In the opinion of the Committee, these changes and defacement were entirely unauthorized and would have been improper even if ordered by the Water Board. The Board has heretofore declared its opinion as to the impropriety of designating any of the public works by the name of an individual citizen, because of his connection with the City Government and your committee sees no reason why this Lake should be made an exception of. These views have long been entertained but have thought it best to defer presenting them until the present time, when by no possibility can it be supposed that you are in any way influenced by personal or political feeling. Ask that the Lake be referenced from this point forward as Lake Roland. Unanimously resolved.

So, one has to wonder – did a political adversary go and change the name from Roland to Swann over the door? And why would the Water Engineers continuously refer to the lake as Swann Lake? Every entry that I have summarized from the 1862-1869 journal notes “The work at Swann Lake…” or as such. Here is what the work at Swann Lake looked like. Even A. Hoen and Co. called it Swann.

Wikipedia has this to say about Thomas Swann – not too good a commentary!

Many believed once slavery was abolished in Maryland, African Americans would begin a mass emigration to a new state. As white soldiers returned from southern battlefields they came home to find that not only were their slaves gone but soil exhaustion was causing tobacco crops in southern Maryland to fail. With a growing number of disaffected white men, Thomas Swann embarked on a campaign of “Redemption” and “restoring to Maryland a white man’s government”. His strategy was built on the platform of entrenching white power and displacing independent African Americans. During this same time an oyster crisis in New England caused the oyster industry in Maryland’s Chesapeake Bay to surge. Swann’s problem was that the Bay oyster trade was heavily African American. His solution; use government policy to push African Americans in the bay and replace them with, “White Labor, at reasonable rates wherever needed.” Even more egregious he enacted a law that encouraged white fisherman to harass black fisherman when he signed into law the states first ever “Oyster Code.” “And be it acted, that all owners and masters of canoes, boats, or vessels licensed under this article, being White Men, are hereby constituted officers of this state for the purpose of arresting and taking before any judge or Justice of the Peace, any persons who may be engaged in violating any provisions of this article. Furthermore, all such owners and masters are hereby vested with the power to summon pose comitatus to aid in such arrest.” Even more egregious, any property seized during an “Oyster Code” violation was auctioned off, with one quarter of the proceeds going to the white man who initiated the arrest.

Wow and as Confederate Monuments have been removed in Baltimore, I guess no one thought to remove the entrance of Druid Lake at Swan Drive that has his name emblazoned across the top of the arch!

Lake Chapman

22 Thursday Feb 2018

Posted by Ronald Parks in engineering, water history

≈ 2 Comments

Tags

Baltimore, engineering, POLITICS, Public Works, Research, water history

From the 1867 Journal of the Water Board minutes comes the following: December 30, 1867: The Committee on Lake Chapman having recommended a change of name for said lake, it was on motion resolved that the said lake be called “Druid Lake”. And that the Engineer be directed to erase the name Lake Chapman from any and all buildings, structures, charts or drawings, on or in which name now appears and to substitute therefore the same as above, “Druid Lake”.
I wonder who ex. Mayor Chapman pissed off? I could not find anything in the Maryland State Archives blog that would warrant such drastic actions. As a side note – transcribing script gives me a headache. I’m only at page 279 of 462!

Trash and Civic Pride

30 Tuesday Jan 2018

Posted by Ronald Parks in Baltimore, HISTORY

≈ Leave a comment

Tags

Baltimore, HISTORY, POLITICS, Public Works, Trash

Here we have Mayor Thomas D’Alesandro, Jr. with a kid in a trash can. School #98 Samuel Morse. Civic pride.

A parade was even held that year – 1951

Jump forward to 1987 and the mayor back then came up with a plan to give everyone new trash cans. Thirty years later, the new mayor did the same thing, at a cost of $10,000,000.00! I wonder what happened to the ones of 1987??

And finally, Ethel Ennis showing her pride by playing TrashBall!



History Hike Part 2

23 Tuesday Jan 2018

Posted by Ronald Parks in Baltimore, Dams, water history

≈ 4 Comments

Tags

Baltimore, Dams, engineering, Gunpowder Falls, Hiking, HISTORY, mills, nature, POLITICS, Public Works, Research, water history

Now the good stuff! In yesterday’s post I shared about our hike along the Little Gunpowder Falls, from Jerusalem Mill to the old iron bridge at Franklinville. On the way we stopped and explored an abandoned mill race and structure that appeared to be for valving or damming up the water flow. Back at my office on Monday I found a report from 1933 concerning the mill and property.

Here is a photograph of the mill that use to be there:

The 1933 report gives this description of the mill – Wm. Barton Mill in Franklinville, Little Gunpowder Falls. Several mill buildings used for the manufacturing of cotton duck. Mill race and dam have been broken thru since about 1926. Mill was built in 1883. All manufacturing equipment has been removed except for turbine. Barton purchased property from Mt. Vernon-Woodberry Mills on August 5, 1930. Information is sketchy on ownership. 1899 sold to Mt. Vernon-Woodberry Mills, yet they sold it twice. Once to Oak Tire and Rubber in 1925 and to Barton, but notes ownership to Marvin Merryman in 1929. No info on size of mill pond since dam was broken through. Supplementary water reservoir of 20,000 gallons in center of square in tenement section to furnish water for automatic sprinkler system in mills. Dam, made of timber, was about 800’ from mill. There was a water wheel at one time, with 140hp capacity.
Buildings at mill included: the main mill, waste house, store house, boiler house, and wheel house. There were also 3, two family two story houses on property. And more, according to tax records at Baltimore county. Records mention a mill adjacent to this one, to the north, known as Jericho mill. no traces of mill could be found.
Along with the report is this plat which shows the layout of the buildings:



And this plat:



As stated before, we climbed down into the mill race where we saw holes in the structure. I told Kathy I believed them to be supports to hold valves or gates.

In the report was this photo. The center part of this structure on the left is missing, along with the dam itself on the right.

Below is a photograph of the area today, where the mill use to be. A sign on the fence says it is managed by Carnegie Express Construction Managers, Builders and Developers:

What does this have to do with Baltimore’s Water Supply History?

Typhoid cases, which had decreased by the mid-1920s, would re-emerge by the early 1930s along with a long period of drought. In 1932, the City Government hires consultants to review the status of its water supply. These consultants would form a board of engineers known as The Advisory Engineers on Water Supply. The engineers were Messrs. John H. Gregory, Gustav J. Requardt and Abel Wolman9. On December 19, 1934, the Advisory Engineers released their report:
1) Immediate construction of a new Gunpowder Falls Montebello Tunnel.
2) Immediately following the completion of the new Gunpowder Falls – Montebello Tunnel, the existing Loch Raven – Montebello Tunnel should be strengthened.
3) Conduct surveys, land purchases, sub-surface explorations and preparation of plans and specifications for the development of an additional water supply should be undertaken at once. (Areas of development looked at by the Board were the Patapsco River; the Little Gunpowder Falls, Winters Run and Deer Creek, and the Susquehanna River).

They were going to dam up the Little Gunpowder Falls and all the mills and property along the Falls would need to be bought (or taken). It was decided to go with Item #1 above.



Guilford Reservoir

22 Wednesday Nov 2017

Posted by Ronald Parks in Baltimore, engineering, water history

≈ Leave a comment

Tags

Baltimore, engineering, FILTRATION, Guilford, HISTORY, POLITICS, Public Works, water history

1888 – Eastern High Service Reservoir at Guilford: On June 5th, 12 acres, 3 roods and 29 perches of land was purchased on Cold Spring Lane, west of York Road, for an Eastern High Service Reservoir at Guilford. The Guilford estate was purchased from the heirs of the late A. S. Abell. A contract was awarded on July 30th to Messrs. Jones & Thorne for the construction of the Guilford Reservoir. The reservoir will have an elevation of 350 feet and a capacity of 40 million gallons of water. The water will be supplied to this reservoir from Lake Clifton via the Eastern Pumping Station. All the area between Huntingdon Avenue and Cold Spring Lane will be supplied with water from this reservoir. The 36-inch pipes temporarily used to supply Gunpowder water to Roland’s Run will be re-laid under York Road, forming a line through which water will be forced from Lake Clifton to Guilford Reservoir. The construction of the Guilford Reservoir commenced on August 1, 1888.

Property purchased by the City.

An earlier drawing without the date on top stone of vault.

A later drawing for construction purposes, showing the date. The connection of this reservoir to the water system is documented in the Early Water History: 1889 – Eastern High Service Pumping Station: A contract was awarded to Henry R. Worthington Company for the erection of the Eastern High Service Pumping Station at the corner of Oliver and Ann streets. The pumping station will have a heavy duty pump with a capacity of 5 million gallons per day for the Guilford Reservoir and ultimately for increasing the water supply in Druid Lake. Supplying Druid Lake is a result of decreasing flows of the tributaries supplying Lake Roland; and of the increase in water demand to the higher elevations. The pipeline installation connecting the Eastern Pumping Station to the Guilford Reservoir was nearly completed during the year. The construction of the Guilford Reservoir was proceeding at a good pace. The excavation was completed, the vault chamber was constructed, the puddle trenches in the embankment surrounding the reservoir were sunk to the requisite depths, and the mains to the reservoir were installed.

Another drawing by years end. Interestingly the date on the vault house is 1889, but a recent search shows the date as 1893:

Hard to see the date on the top stone in this street view. From the history: 1893 – The Guilford Reservoir was completed on June 29, 1893 and placed into service supplying finished water to the public. By 1895, the water consumption from the Guilford Reservoir averaged 400,000 gallons per day.

This drawing is from 1894. I did not know there even was a fountain in here. The two times I went to the reservoir for work was a few years ago for a CL2 leak and just recently to see the work going on there.

In this 1938 aerial view, from the Baltimore Sun, Dark Room series, you can see the fountain in the center of the reservoir and the valve vault on the right hillside.

Here is an overhead shot a couple years ago.

And here is another, showing the construction to cover the reservoir (actually installing new tanks).
